Heron 1 mini
Kiosk
概述
Heron 1 mini enhances the self-service customer experience and frees up staff to do value-adding activities with its sleek design, powerful performance architecture, versatile accessories, and scanning prowess. Perfect for deployment in commercial settings with limited space.
Core Highlights
Meet our powerful 8-core processor
Powered with AI.
With its AI-enhanced 8-core CPU at the core, Heron 1 mini intelligently accelerates transactions, optimizes performance on the fly, and ensures a smooth, responsive experience even during peak hours.
CPU
Octa core
Dual-core A76 2.0GHz
Hexa-core A55 1.8GHz
NPU
3 TOPS
存储器
8GB RAM +
128GB ROM
Max configuration
15.6” Full HD
1920 x 1080
Brilliant display,
better impression.
Not just a pretty face.
Heron 1 mini’s display provides crisp visuals and compact screen real estate, alongside the utility to get through everyday usage with ease.

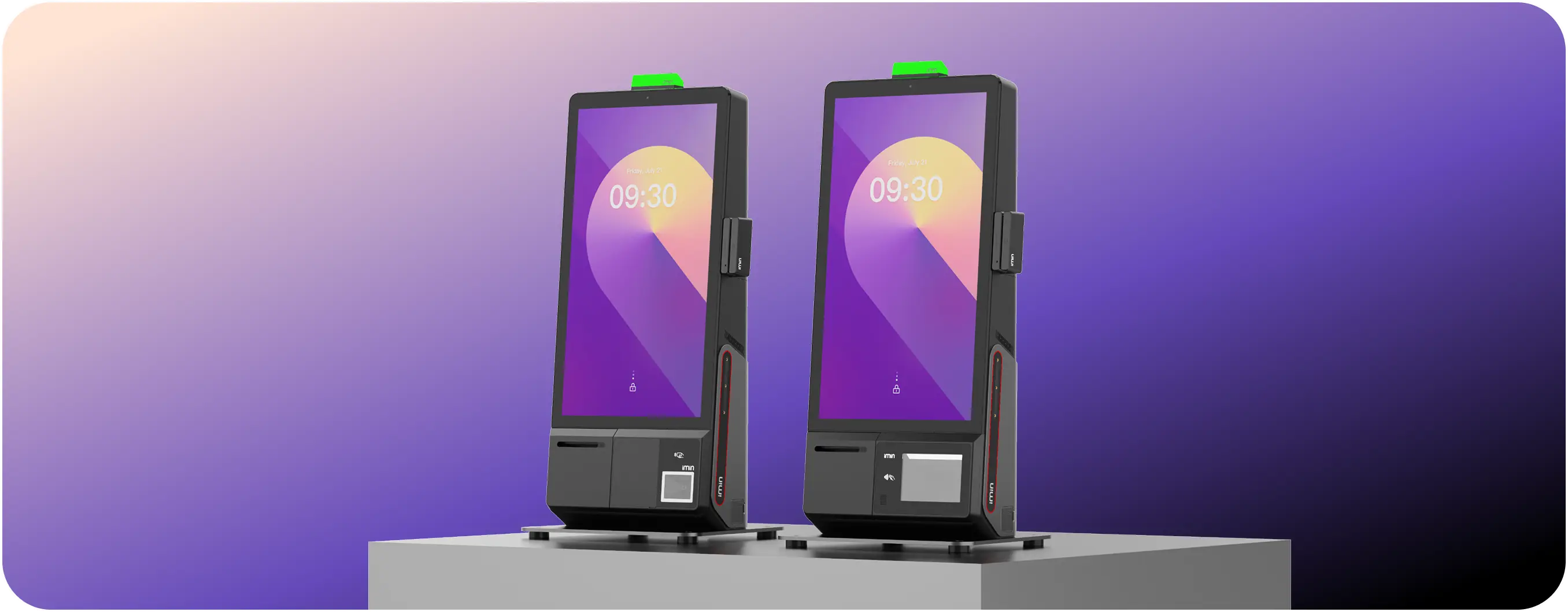

Available in single display 和 dual display.
Registers inputs even through gloves or wet hands
10-point capacitive touch
Anti-fingerprint
G+G
Select the right scanner for your business.
Generic Scanner
Spec list
0.3 MP
CMOS Sensor
30 FPS
Scanning Speed
13mm--230mm
QR code (40mil)
1D ≥ 5mil, 2D≥ 6mil
Accuracy
EAN13 (13mil):
13mm--120mm
Depth of Field
Retail Scanner
Spec list
1.3 MP
CMOS Sensor
60 FPS
Scanning Speed
0mm--280mm
QR code (40mil)
1D ≥ 4mil, 2D≥ 5mil
Accuracy
EAN13 (13mil):0mm--170mm
Depth of Field
MRZ Scanning
Able to scan passports
Why our retail scanner excels:
Facilitates easier, faster, reliable scans - even on small or fine print. Greater depth of field to increase accuracy with minimal adjustments. Reduces scanning time and error, even with awkwardly placed codes Consistent success rate in environments with bad lighting or codes with minor damage
Comprehensive payment options
Supports NFC (SoftPOS) and Magnetic Stripe Card Payments
EMV payments
NFC payments
(SoftPOS compatible)
QR payments
More exciting features
摄像头
2MP monocular camera with 75° vertical field of view (FOV). Enables facial recognition.
Microphone
100db stereo speaker with dual microphone
HDMI Compatible
Connect to other displays for flexible setup options
Automated Start-up
Simplistic, streamlined deployment
耐用性
The front-facing ordering interface is dust and water resistant. Operating temperatures between 0-50°C
Removable Front Cover
Facilitates easy routine maintenance and cleaning
Magnetic Stripe Reader
Facilitate loyalty card programs or employee recognition activities
旨在满足任何环境下的业务需求。
Stands & Mounts
桌面支架
VESA Mount
Versatile accessories
Thoughtfully manufactured to stay adaptive and practical in any scenario.
MSR Card Reader
状态指示灯
POS Holder
Payment Module Holder
探索替代方案
Heron 1 Mini
15.6英寸
全高清
热敏打印机 80毫米*80毫米，250毫米/秒
自动切刀
Octa-Core (Dual-Core Cortex-A76 2.0GHz + Hexa-Core Cortex-A55 1.8GHz)
一体式
安卓 15最多 16GB RAM + 256GB ROM
状态指示灯 NFC模块
扫描器
MSR阅读器
打印机
POS Holder
支架/底座 落地支架
桌架
壁挂式
桌架
壁挂式
副屏 -
规格
处理器
Octa core (Dual-core A76 2.0GHz
Hexa-core A55 1.8GHz) NPU 3 TOPS
Hexa-core A55 1.8GHz) NPU 3 TOPS
存储器
4GB RAM + 64GB ROM，8GB RAM + 128GB ROM
16GB RAM + 256GB ROM
16GB RAM + 256GB ROM
触摸屏
15.6", 1920 x 1080
Viewing Angle: (Typ.) ±85° (H)/ ±85° (V)
Brightness: 250 nits (cd/m²)
Contrast Ratio: 1200:1
多点电容式触摸屏
Viewing Angle: (Typ.) ±85° (H)/ ±85° (V)
Brightness: 250 nits (cd/m²)
Contrast Ratio: 1200:1
多点电容式触摸屏
操作系统
Android 15，64位
通讯方式
Wireless: Wi-Fi 6, 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
Ethernet: 1000M, Bluetooth 5.4, NFC
Ethernet: 1000M, Bluetooth 5.4, NFC
摄像头
2 MP 前置摄像头
扬声器
3W Dual
环境
Operating temperature: 0 ~ 50℃
储存温度：-20～60℃
储存温度：-20～60℃
尺寸
Wall mounted: 233 x 199 x 560mm
Table Stand: 287 x 256 x 561mm
Floor Stand: 410 x 460 x 1700mm
Table Stand: 287 x 256 x 561mm
Floor Stand: 410 x 460 x 1700mm
按键
Power key
打印机
宽度80mm（带自动切刀），直径80mm，打印速度高达250mm/s
扫描器
支持一维条码/二维码扫描
电源适配器
输入：100～240V；输出：24V/2.5A
外围端口
USB 2.0 Type A x 1, USB 3.0 Type A x 4
USB 2.0 Type C x 1
3.5mm Headphone Jask x 1, DC Jack x 1
HDMI x 1, RJ11 x 1, RJ12 x 1, RJ45 x 1
Pogo pin (6 pin) x 2, DB9 x 2
TF卡（最大支持1TB）x 1
USB 2.0 Type C x 1
3.5mm Headphone Jask x 1, DC Jack x 1
HDMI x 1, RJ11 x 1, RJ12 x 1, RJ45 x 1
Pogo pin (6 pin) x 2, DB9 x 2
TF卡（最大支持1TB）x 1
配件
MSR Card Reader, Status Light, POS Holder, Payment Module Bracket
认证
谷歌GMS
FCC CE IMDA WEEE
FCC CE IMDA WEEE
* 以上页面中的产品图片及显示内容仅供参考，实际产品效果（包括但不限于外观、颜色、尺寸）及屏幕显示内容（包括但不限于背景UI图片）可能存在差异。
性能结果来自 iMin 内部实验室，并根据特定测试环境得出。实际使用中，由于产品、软件、使用条件和环境因素的个体差异，性能可能会有所差异。
显示器和配件根据用户需求另行出售。
性能结果来自 iMin 内部实验室，并根据特定测试环境得出。实际使用中，由于产品、软件、使用条件和环境因素的个体差异，性能可能会有所差异。
显示器和配件根据用户需求另行出售。
